28 - TIG welding on alluminum, what is it and how to do it

Custom Cez explains what is TIG welding and why it is the best for aluminum welding.

TIG, Tungsten inert Gas, where the Tungsten is the material of witch the electrode is made of and the Inert gas is the gas coming out of the torch's nozzle, commonly Argon.

The lens, the pink piece at the end of the gun that add a much needed feminine touch to an overly masculine design, can have different shapes and it affects the way the gas is dispensed onto the weld and the amount needed to shield it properly.

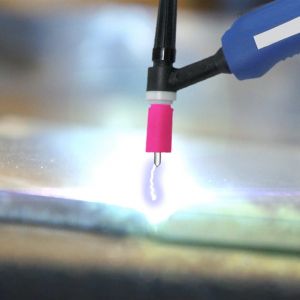

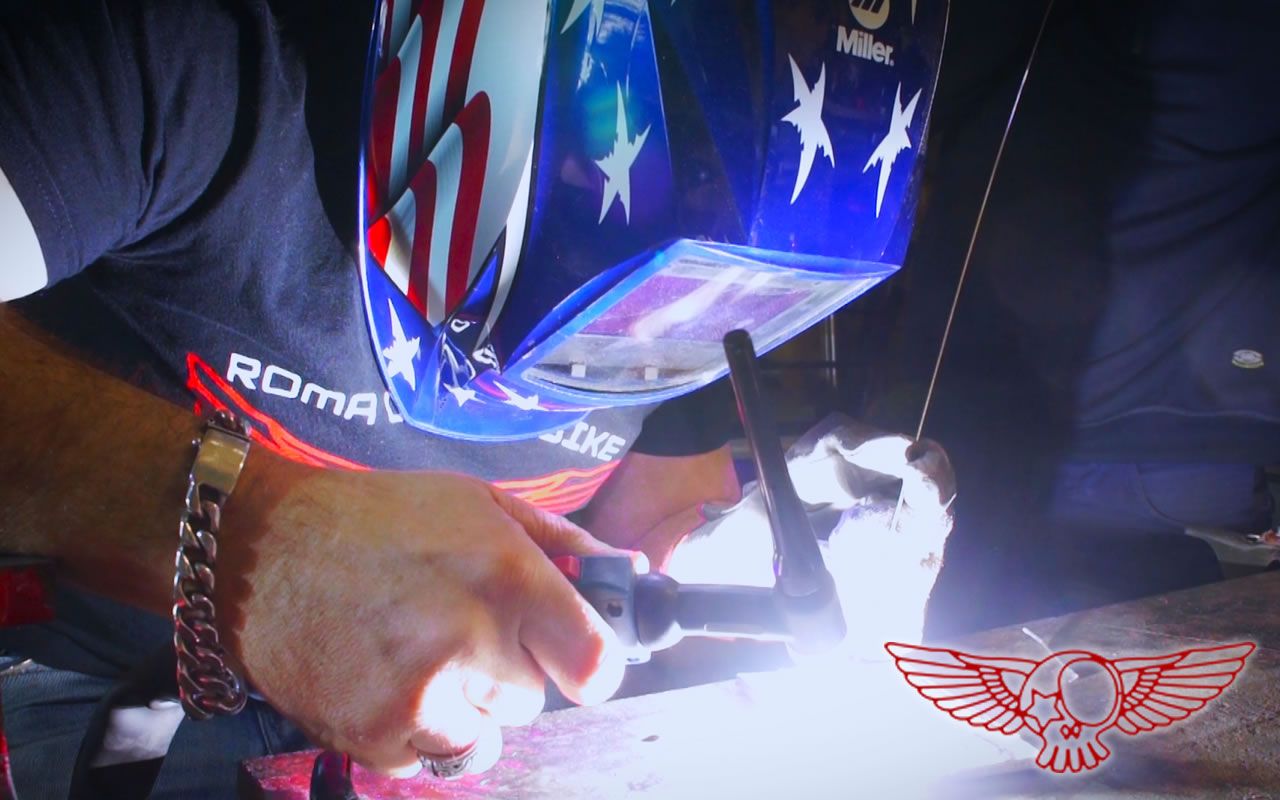

Here's how it works: the electrode is charged with enough voltage to create an arch with the part and enough amperage to create the heat necessary to melt the parts that need to be welded together.

Once you have created a little pool of melted metal we can start adding the metal filler to fill up the space between the two parts and strengthen the joint. You do need to get into the right rhythm, you add the filler and you spread it with the torch. If you get it right you'll get the sought after staked coin look, typical of this welding technique.

To join two thicker pieces it is ideal to bevel the edges to form a v shaped gap between the pieces to ensure a deep penetration of the weld. If needed more passages can be overlapped to achieve full filling of the gap.

But why the gas you might ask, well the inert gas is there to protect the meted metal from contacting the oxygen that would cause oxidation and as a result a week weld.

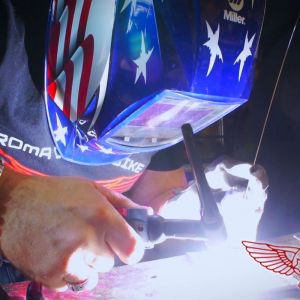

ep28 01 TIG welding alluminum what is it and how to do it

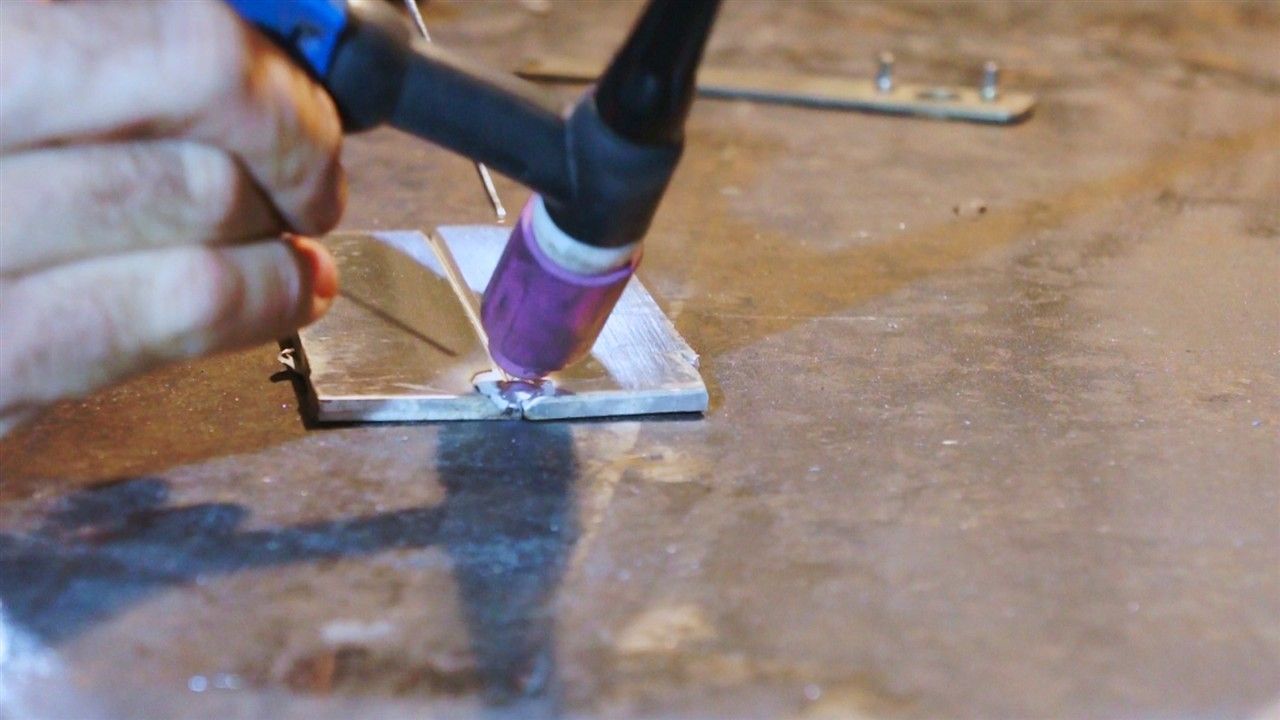

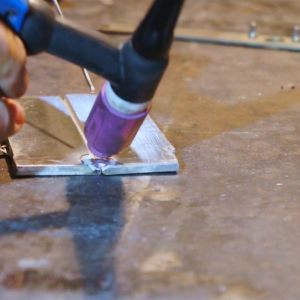

ep28 02 tig welding alluminum

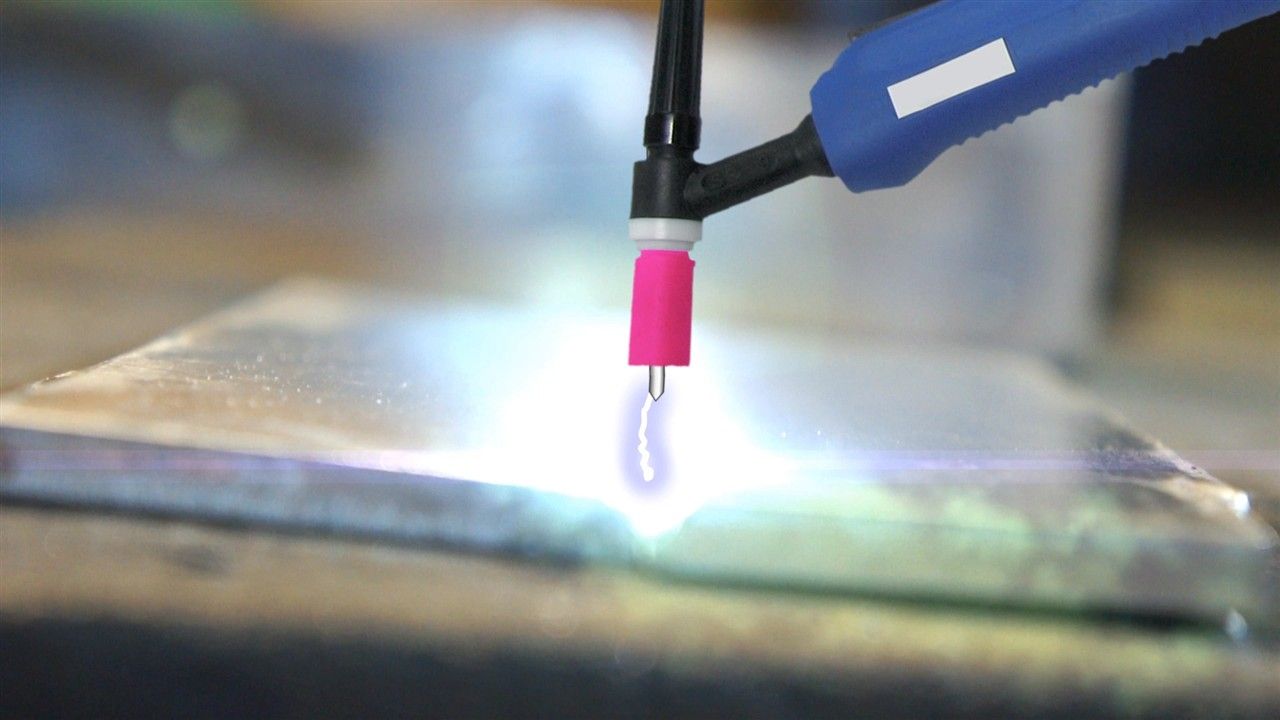

ep28 03 how to tig weld

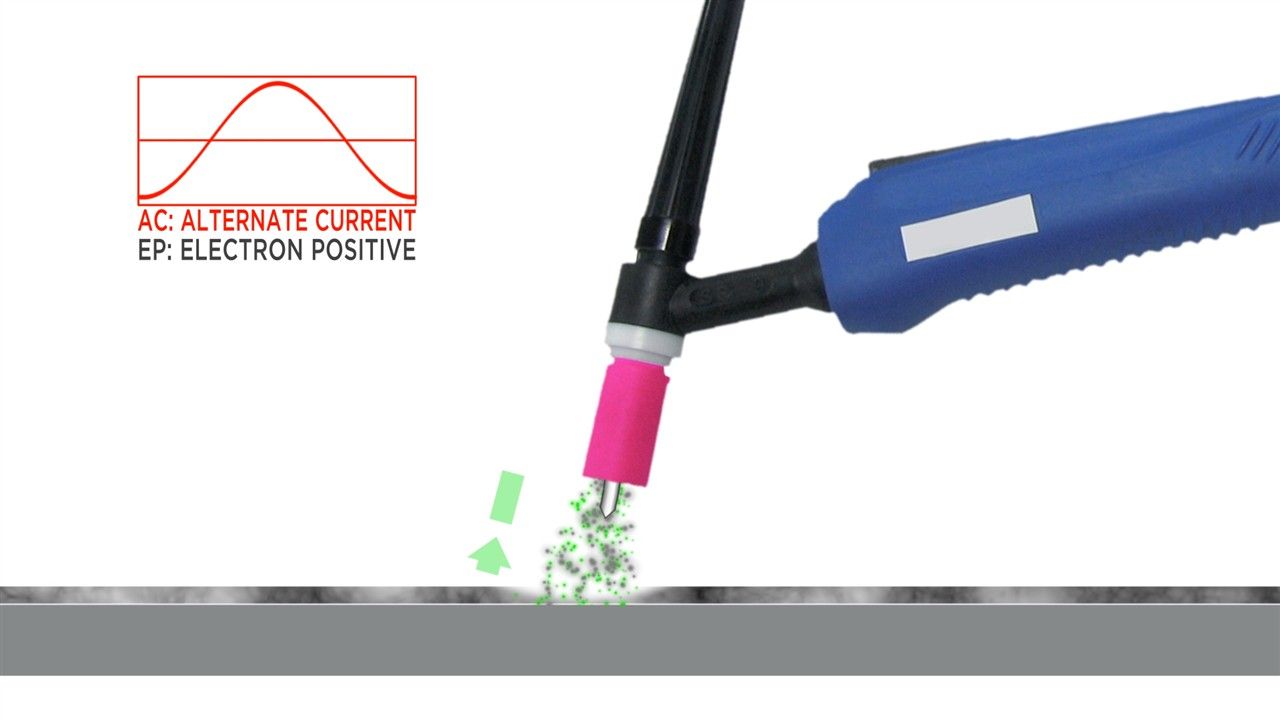

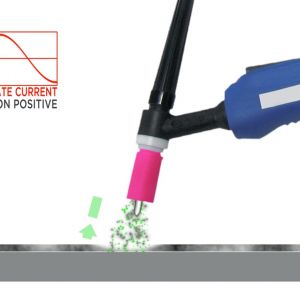

ep28 04 tig EP electron positive cycle
ep28 05 tig EN electron negative cycle

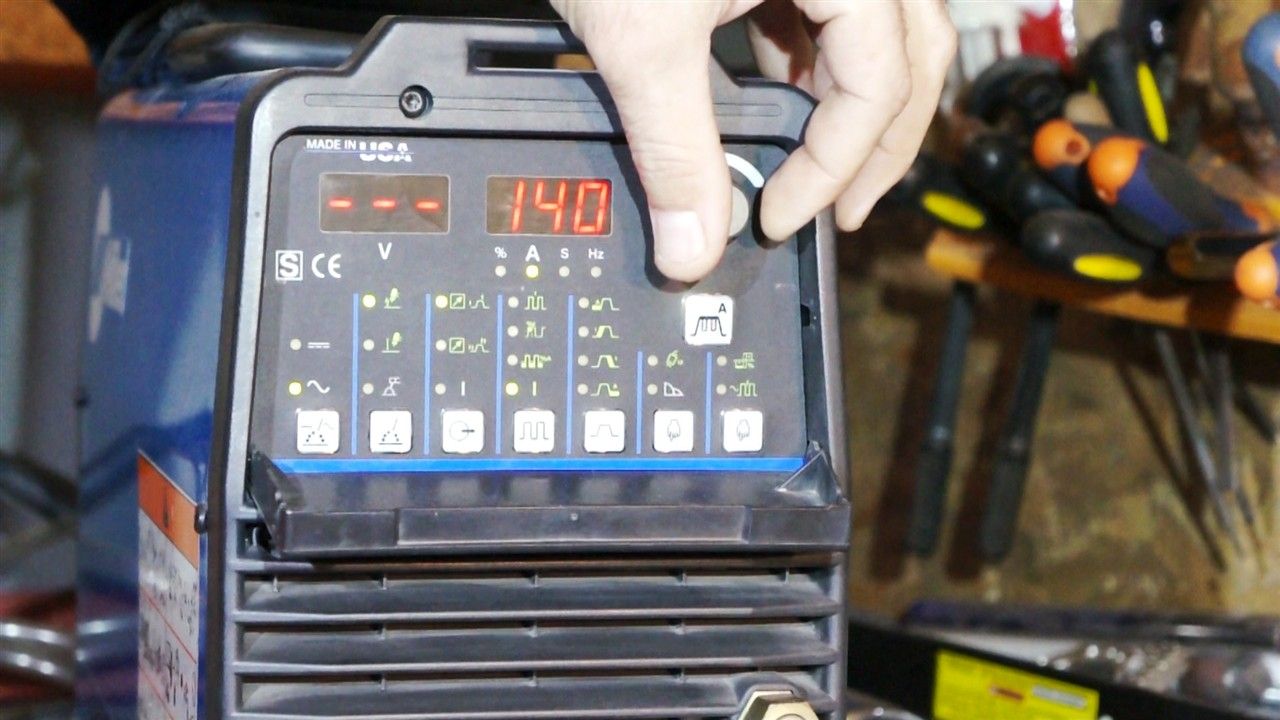

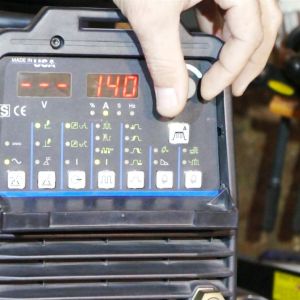

ep28 06 miller tig welder

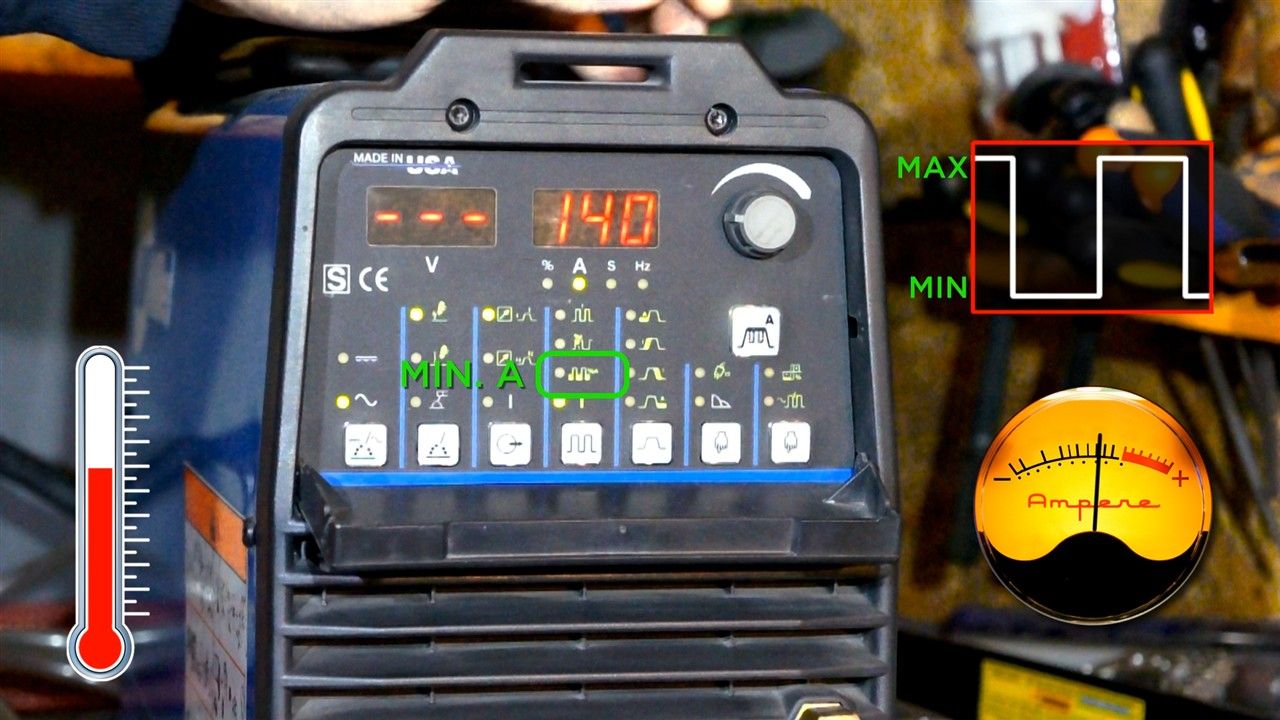

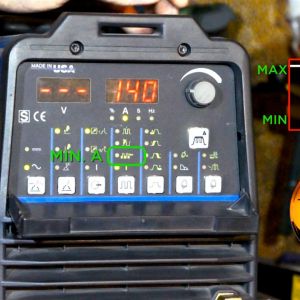

ep28 07 tig ac welder what is it

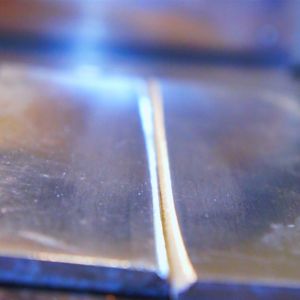

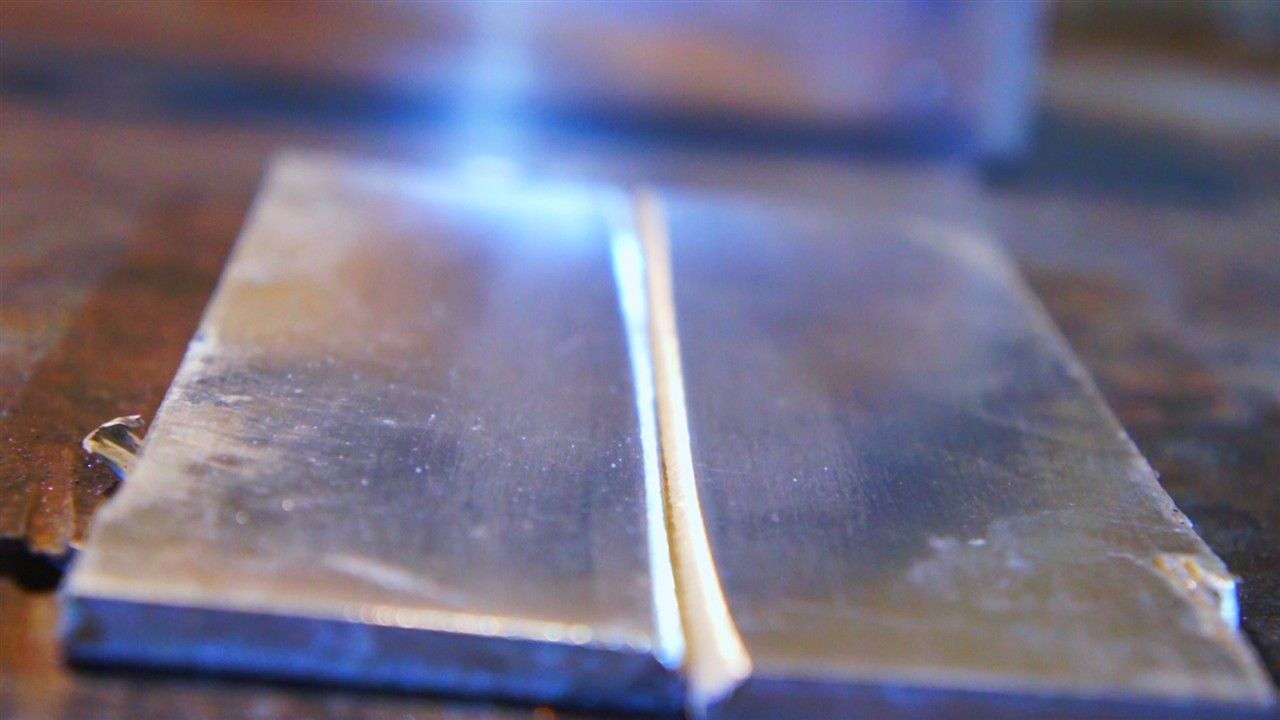

ep28 08 alluminum ready to weld

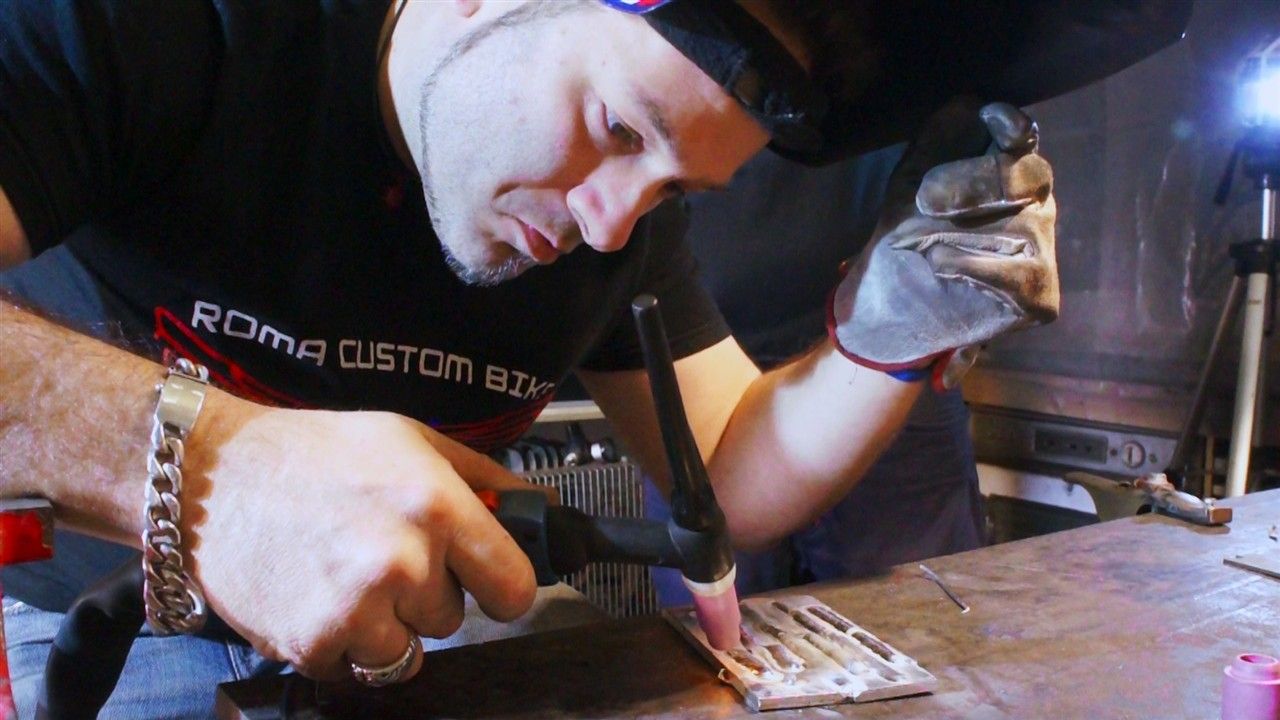

ep28 09 custom cez tig welding alluminum

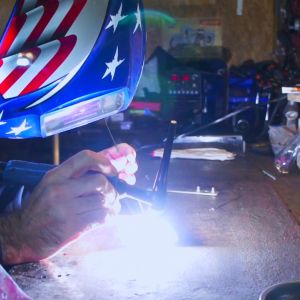

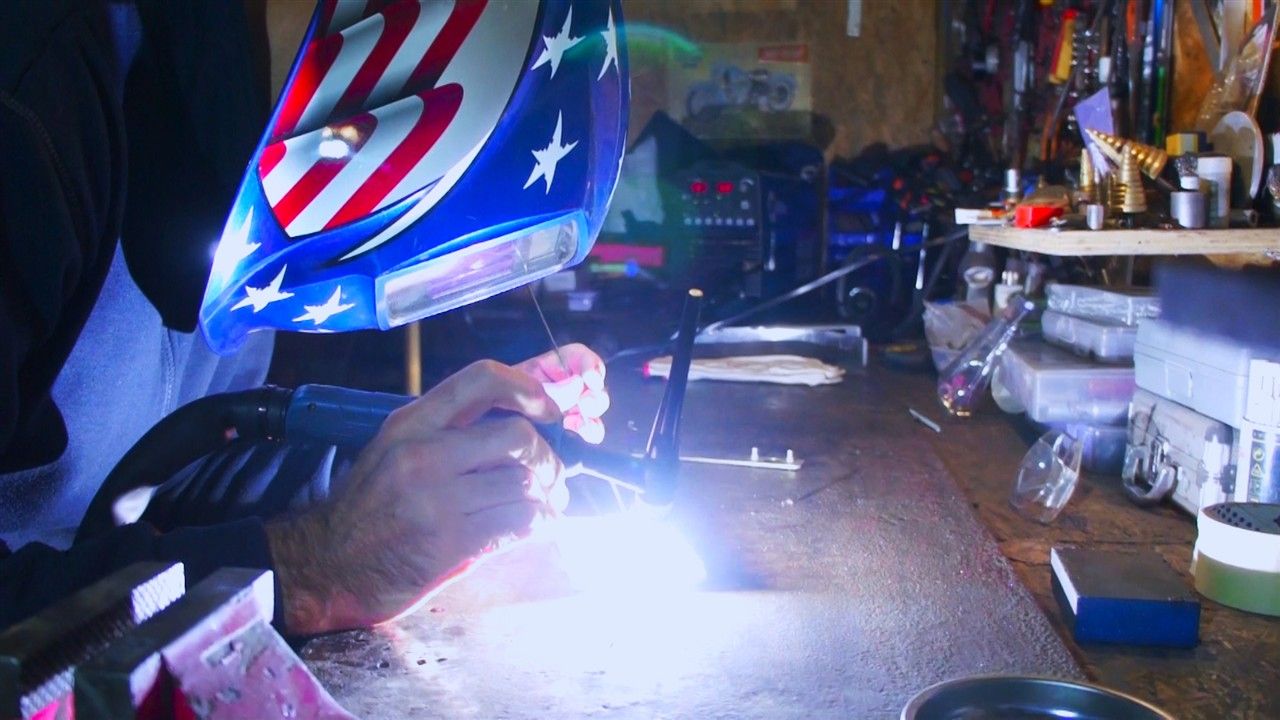

ep28 10 tig welding allumoinum

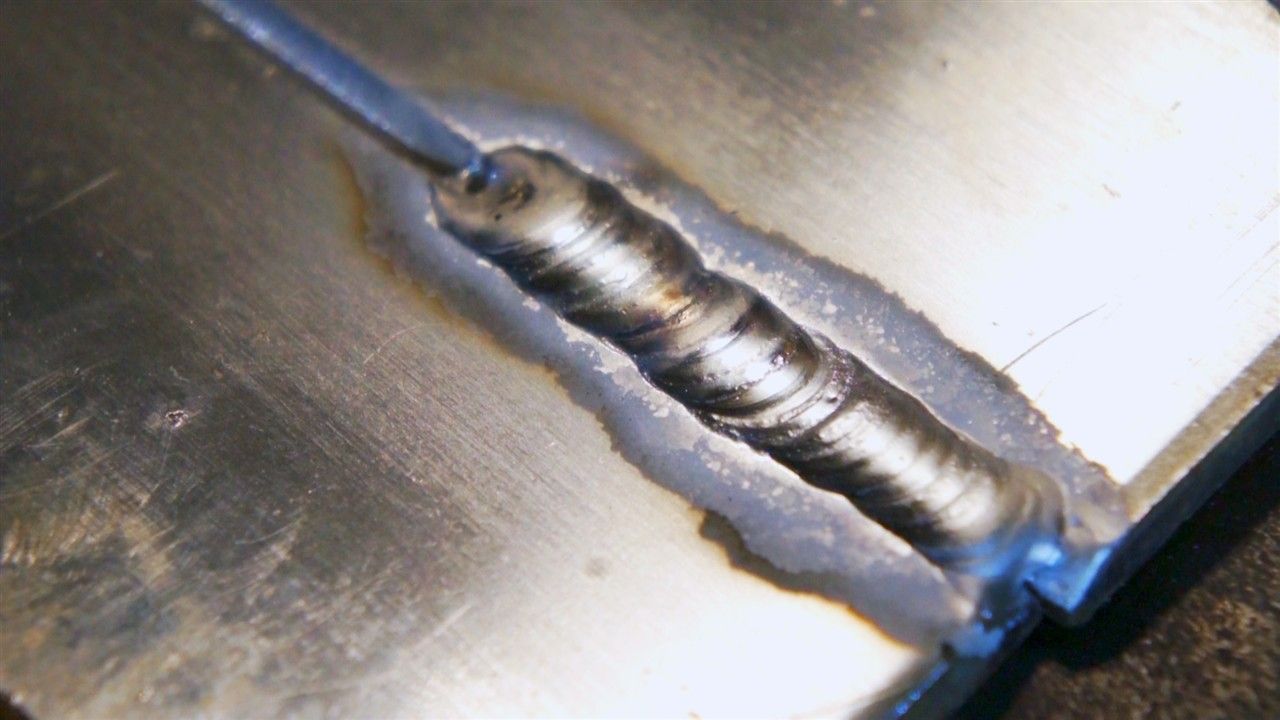

ep28 11 alluminum tig weld

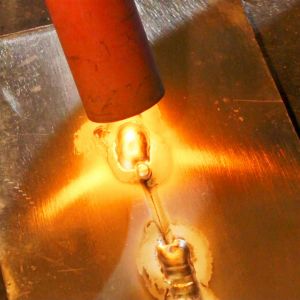

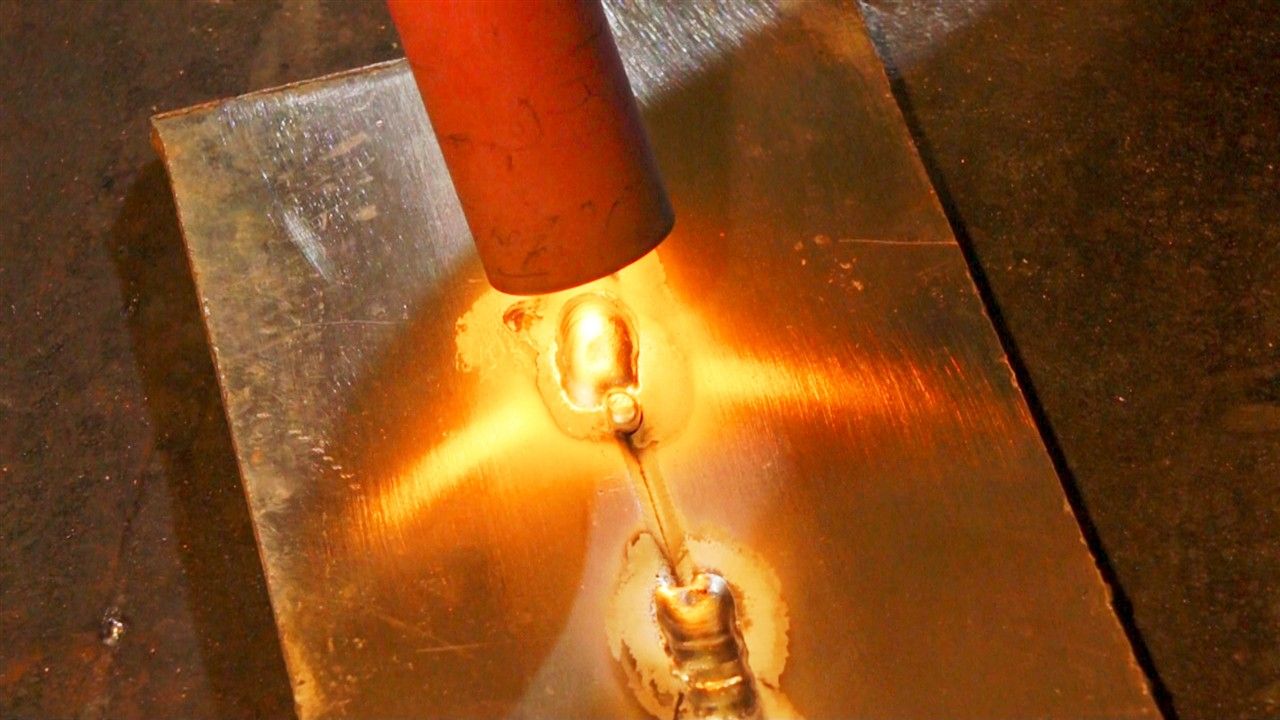

ep28 12 tig welder post flow
ep28 13

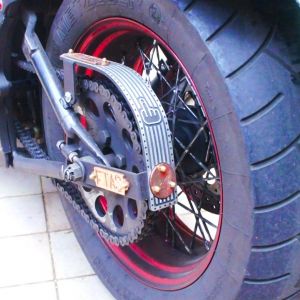

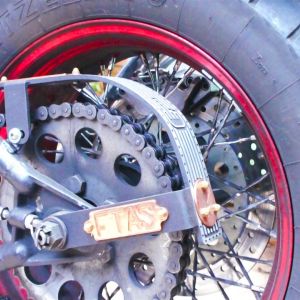

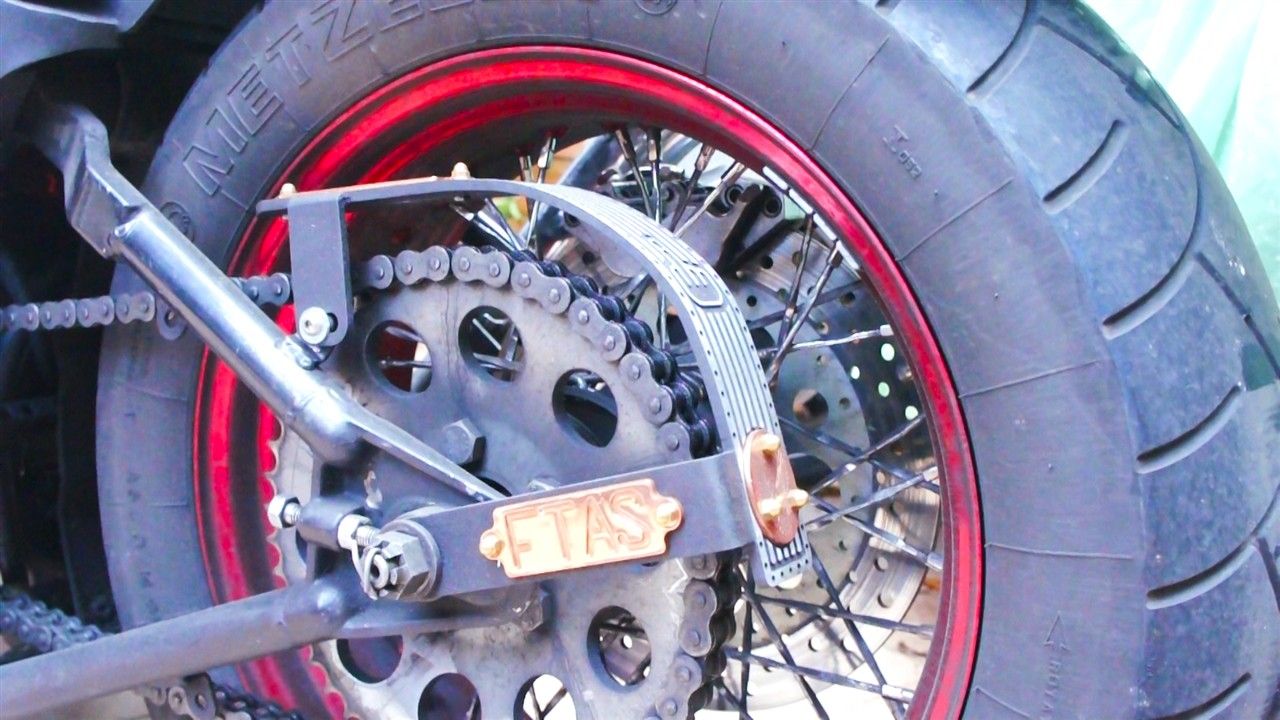

ep28 14 custom cez chain cover
ep28 15 custom cez chain cover









Custom Cez explains what is TIG welding and why it is the best for aluminum welding.





Tags: tutorial, tig welding,, weld,
