09 Harley Davidson EVO engine rebuild - The Assembly

Custom Cez puts the Harley Davidson EVO engine back together in this assembly tutorial.

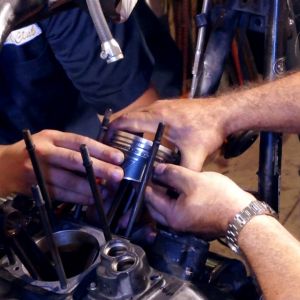

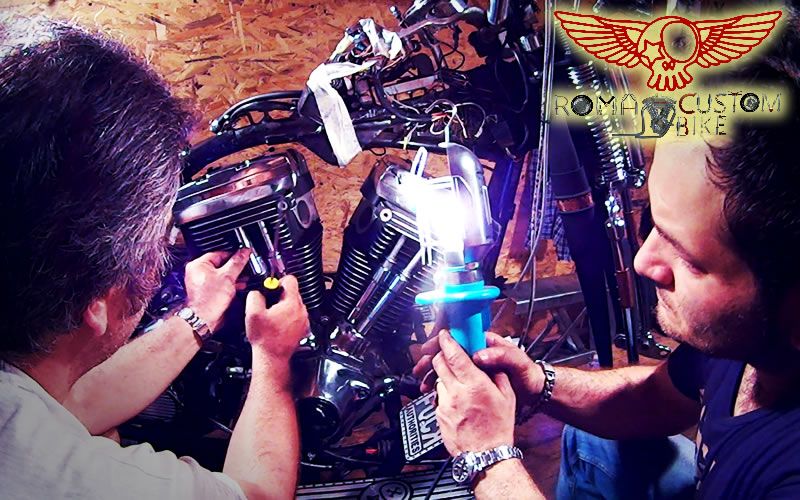

In this episode they will install the pistons, replace the gaskets, adjust the adjustable push rods, install the cylinders, and tighten everything up with a torque wrench.
At the end of the hard work they have an "explosive" surprise to let loose and celebrate, a visit at the shooting range where Custom Cez will shoot for the first time a bunch of awesome guns. From the glock, to the beretta to the 357 magnum to the mother of all guns, the mighty Smith and Wesson 44 Magnum.

You can find an uncut extended version of the shooting range visit in the Shooting Range Special!


 What did we do:

  • old gasket removal

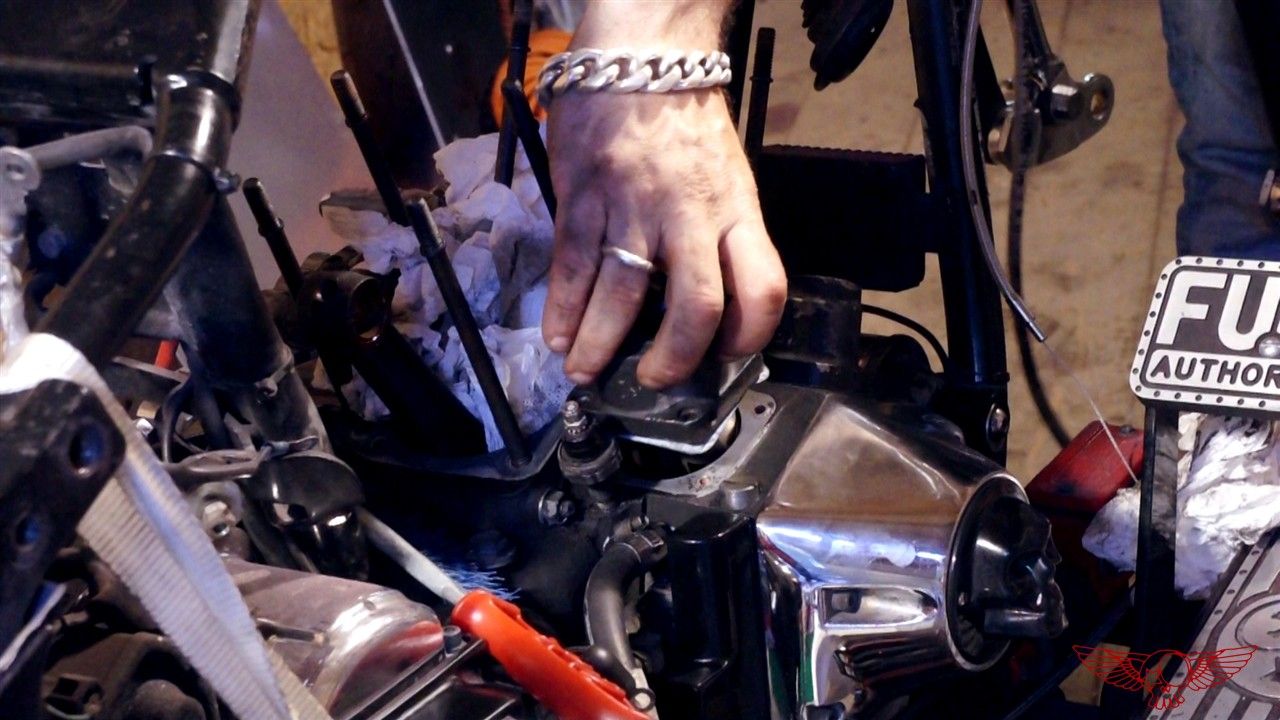

  • tappet removal

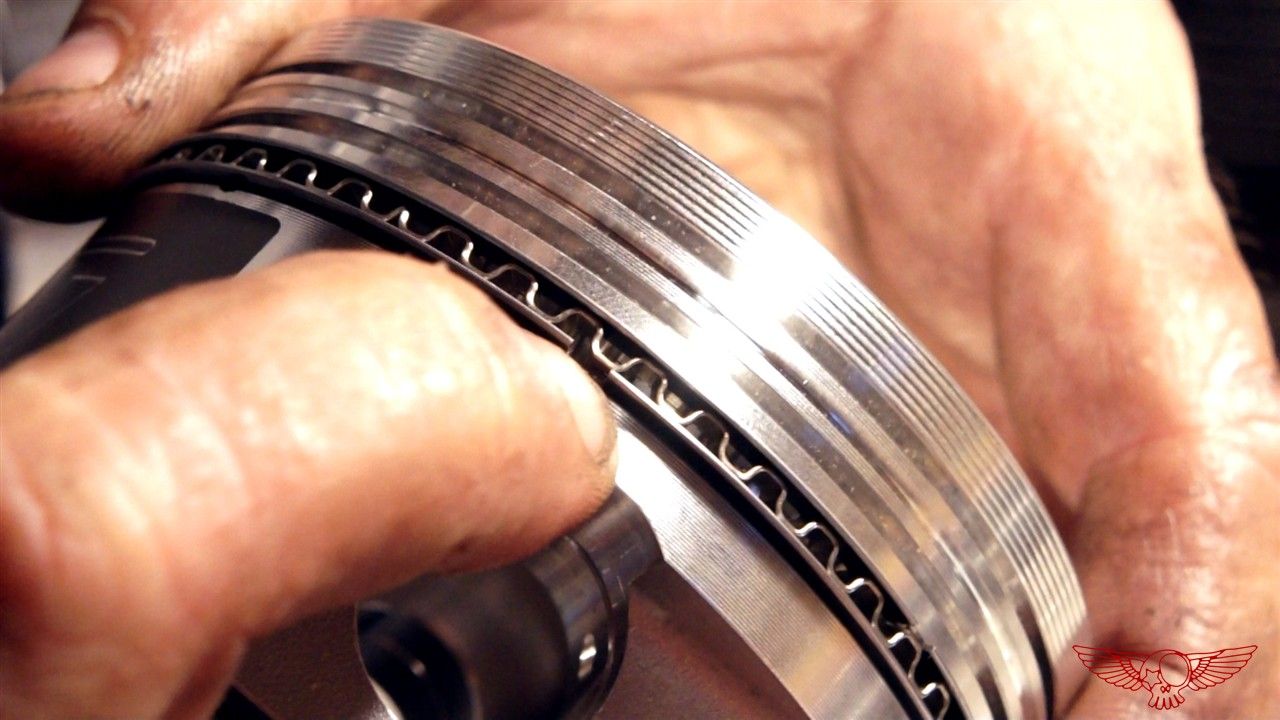

  • piston ring assembly

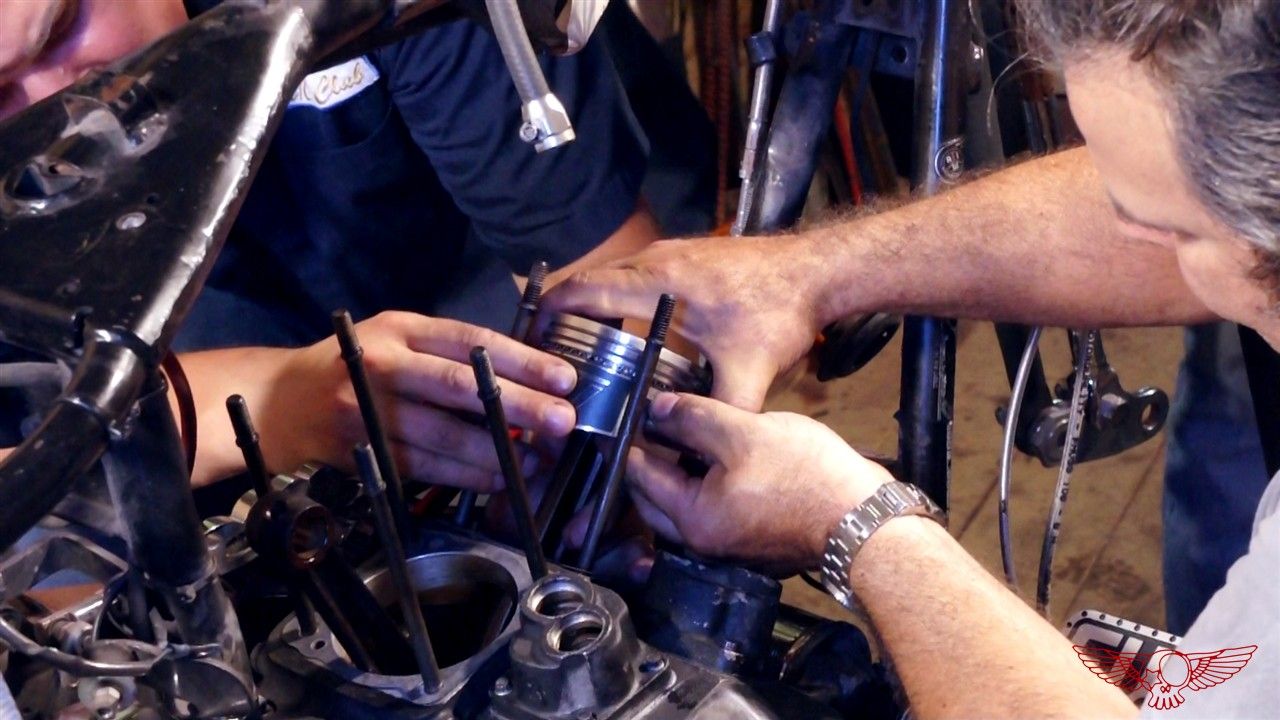

  • piston installation
  • gasket installation

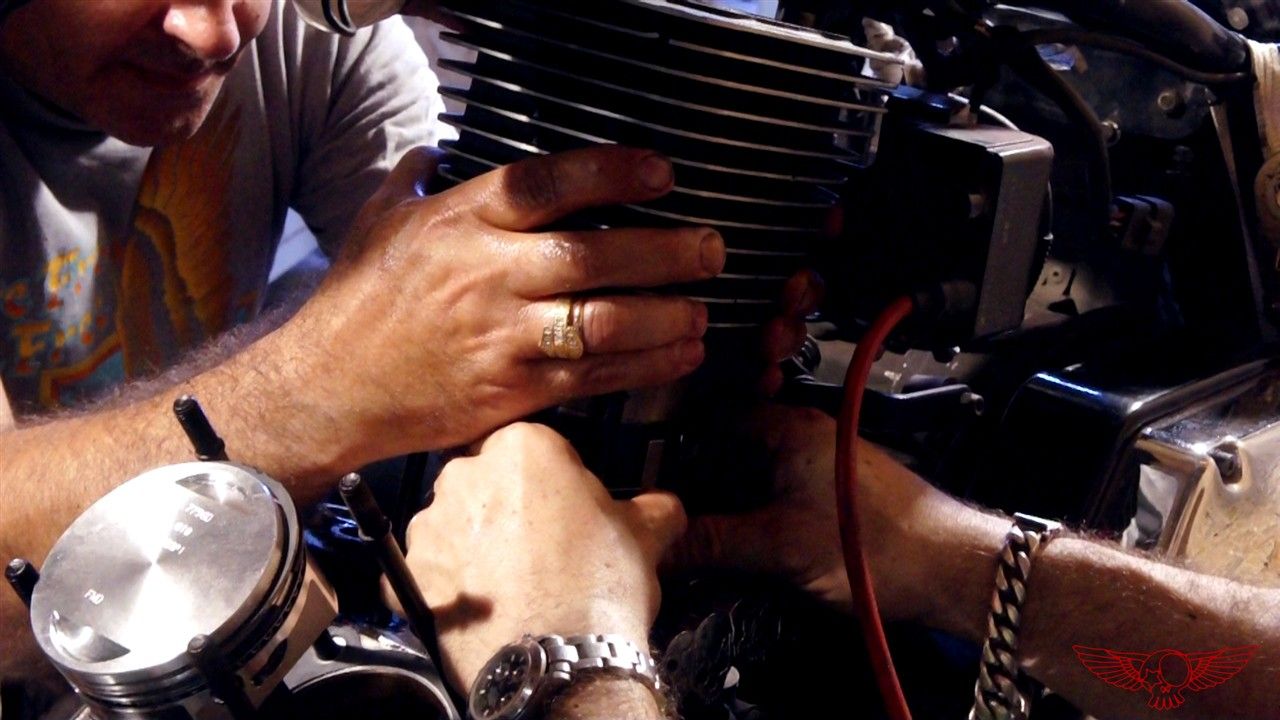

  • cylinder installation
  • heads installation

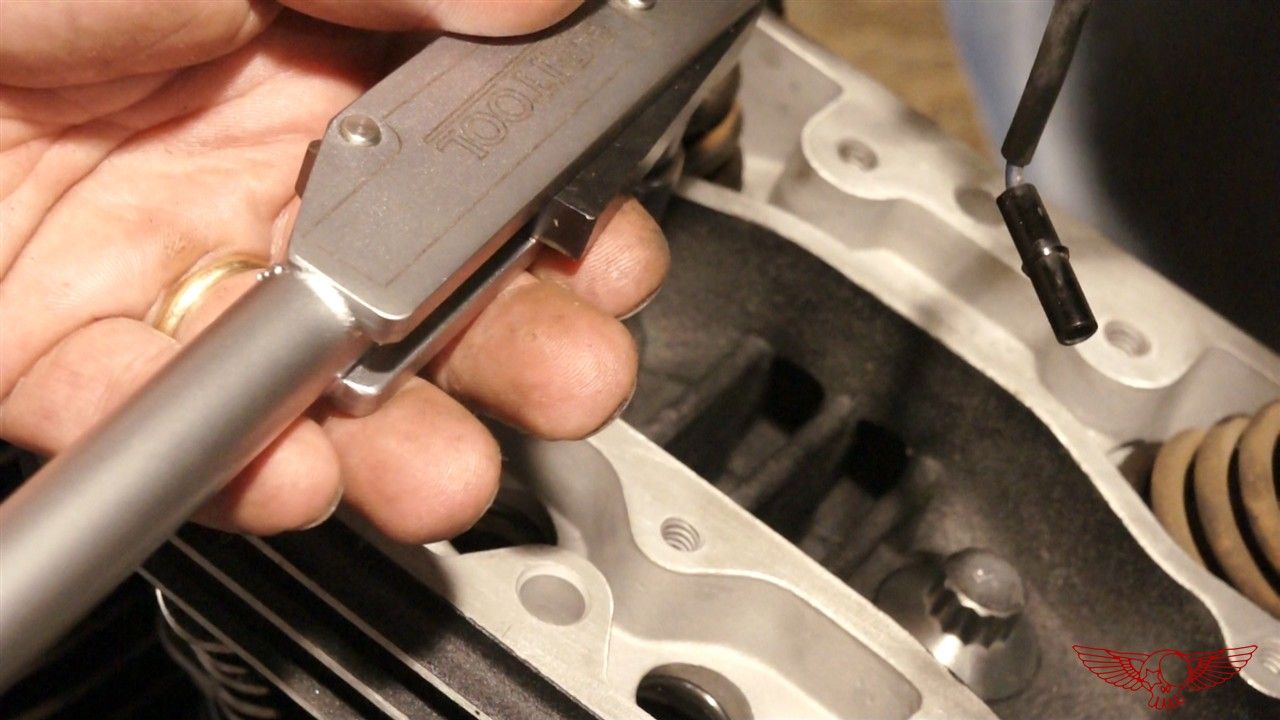

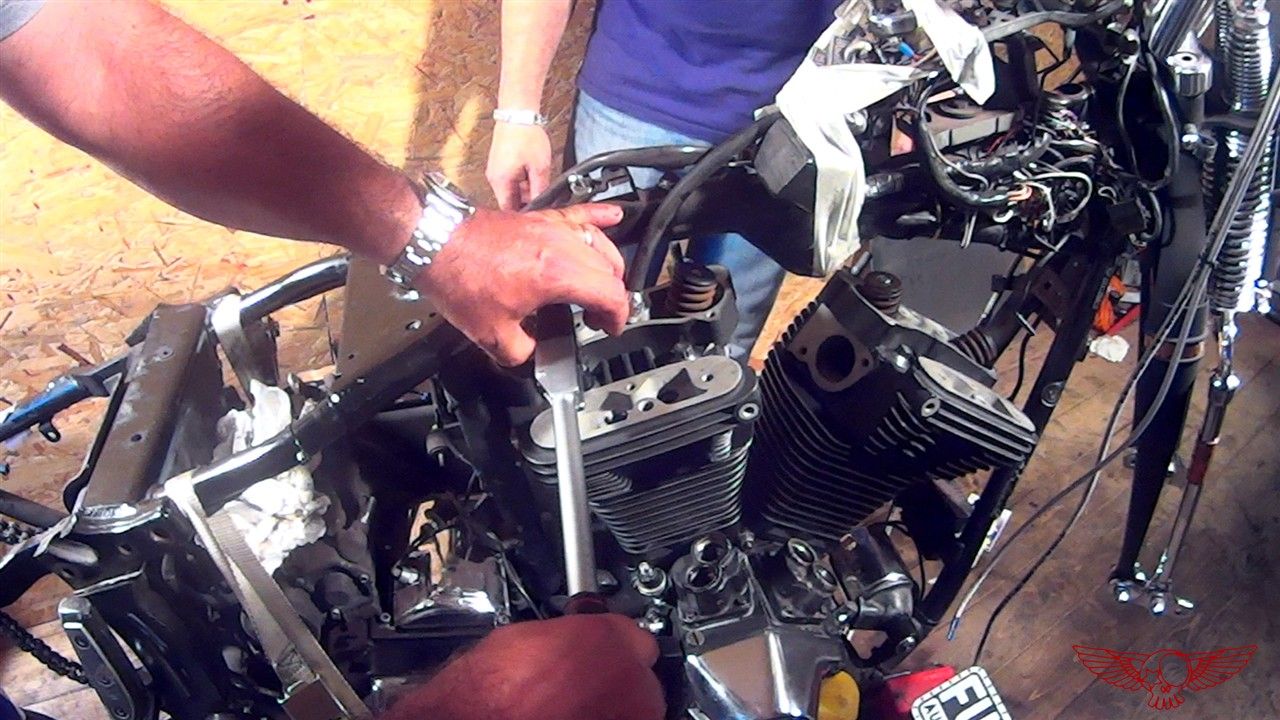

  • torquing all bolts with torque wrench

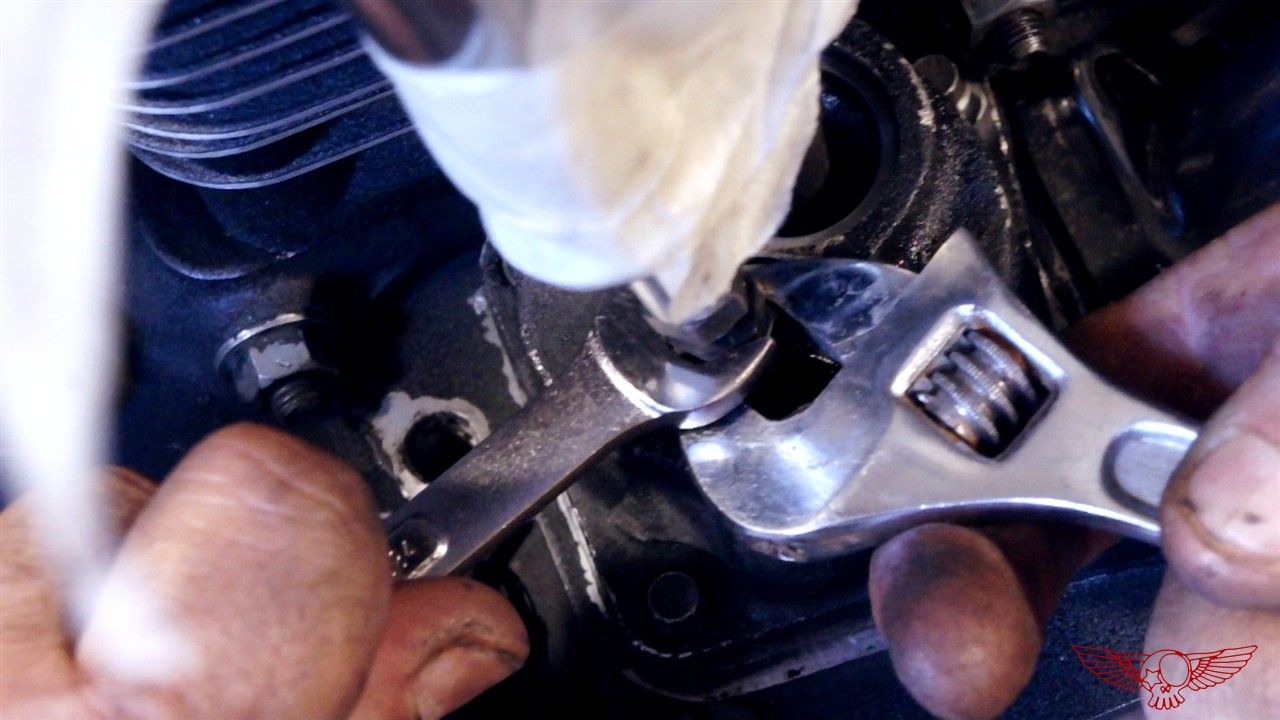

  • adjustable push rods installation

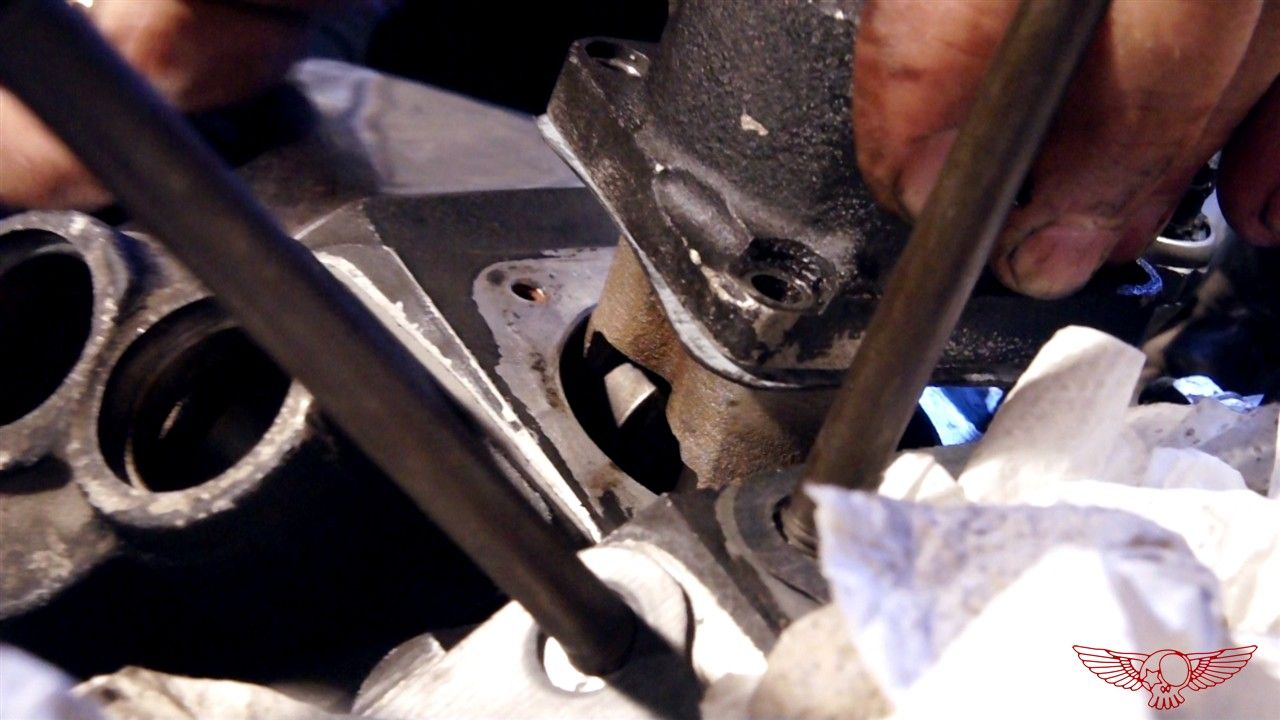

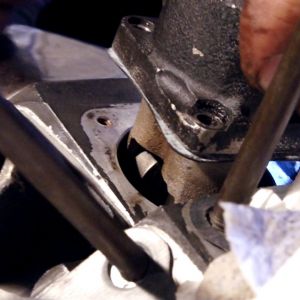

  • push rod adjustment
  • rocker cover installation
  • push rod covers installation

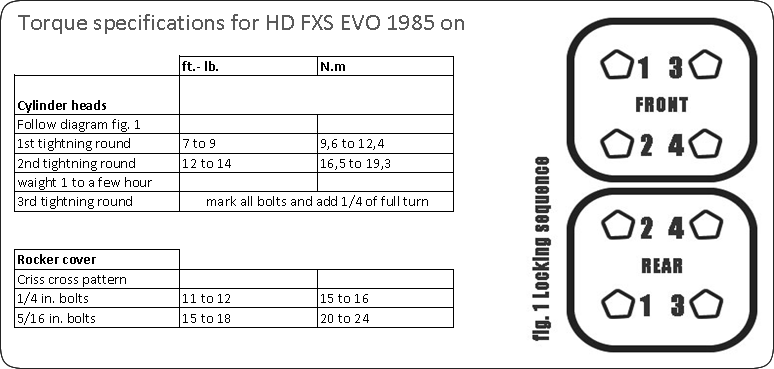

Torque specifications for HD FXS EVO engine from 1986 on

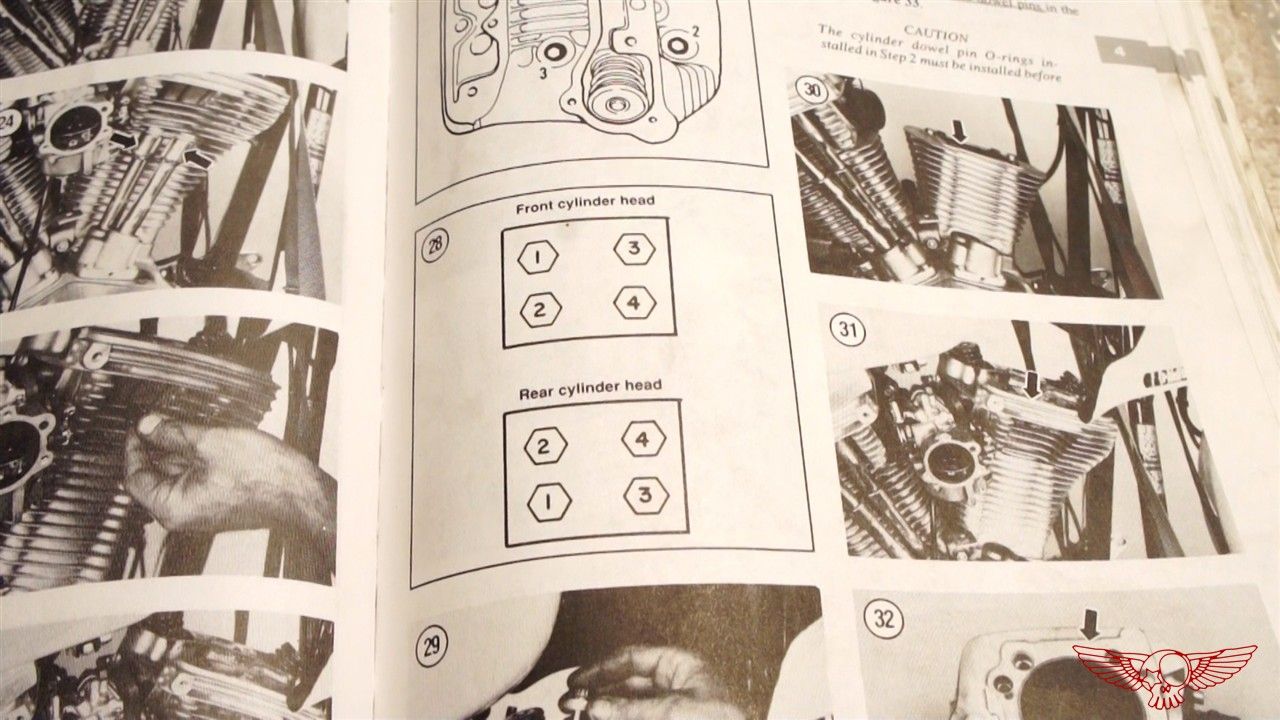

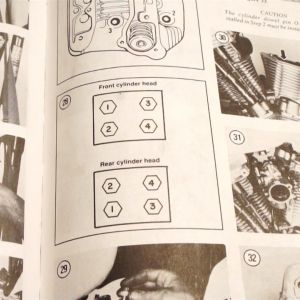

Here is the torquing and locking sequence chart for Harley Davidson EVO engines.

Torque secifications Eng

ep09 01 Harley Davidson EVO engine rebuild
ep09 01a shooting range

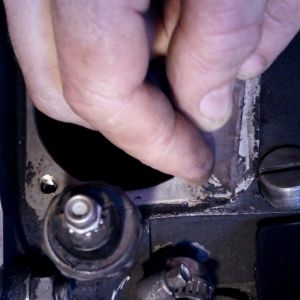

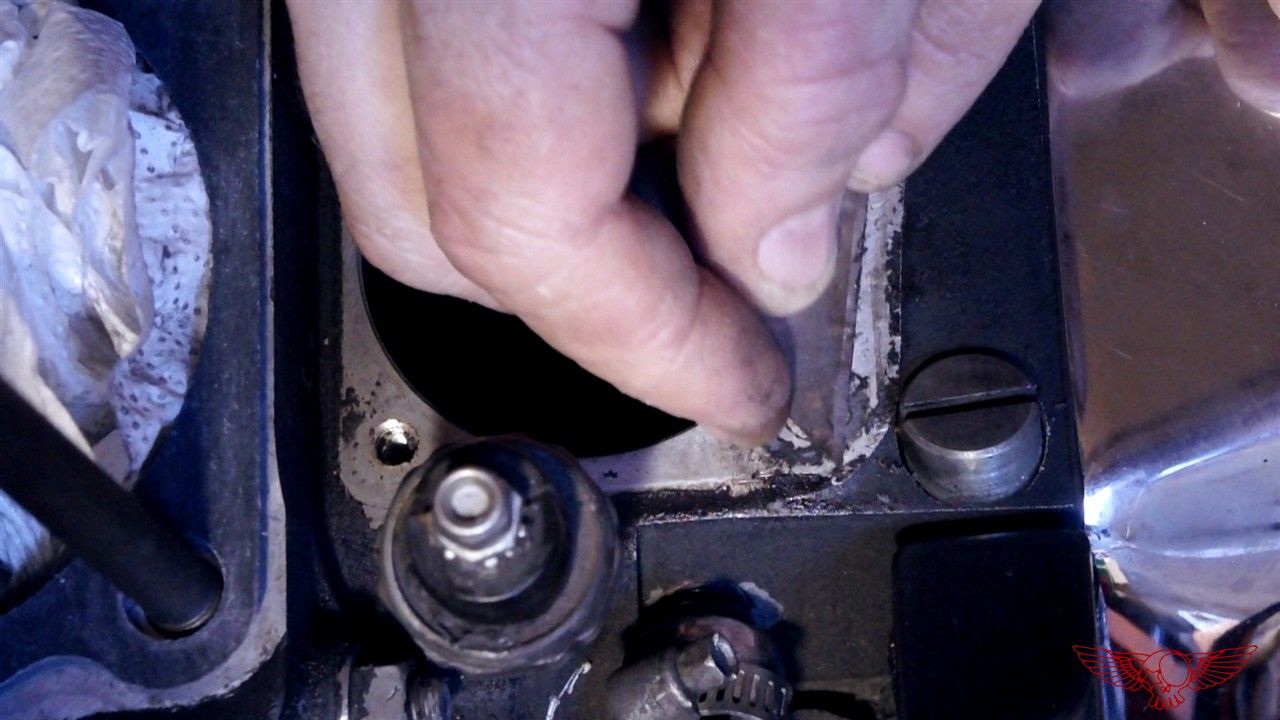

ep09 02engine gasket removal

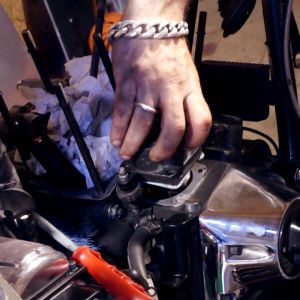

ep09 03 harley tappets replacement

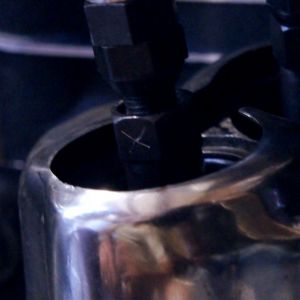

ep09 04 harley pushrods adjustment

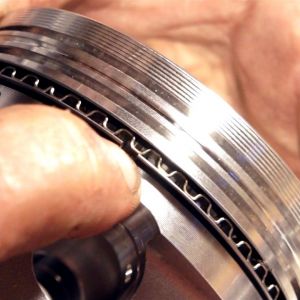

ep09 05 wiseco piston ring
ep09 06 harley engine piston installation

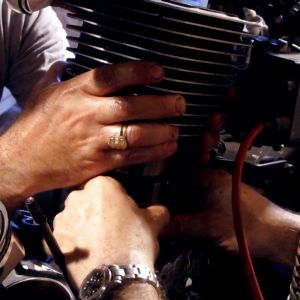

ep09 07 harley davidson cylinder installation
ep09 08 harley davidson criss cross pattern engine

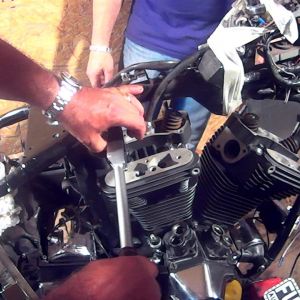

ep09 09 harley heads torque wrench

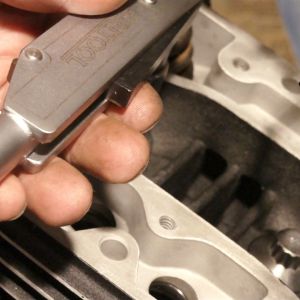

ep09 10 harley head installation

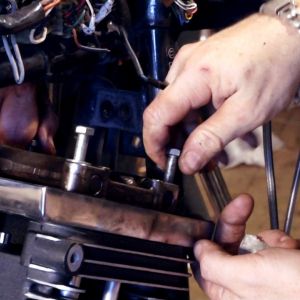

ep09 11 harley evo engine rebuild

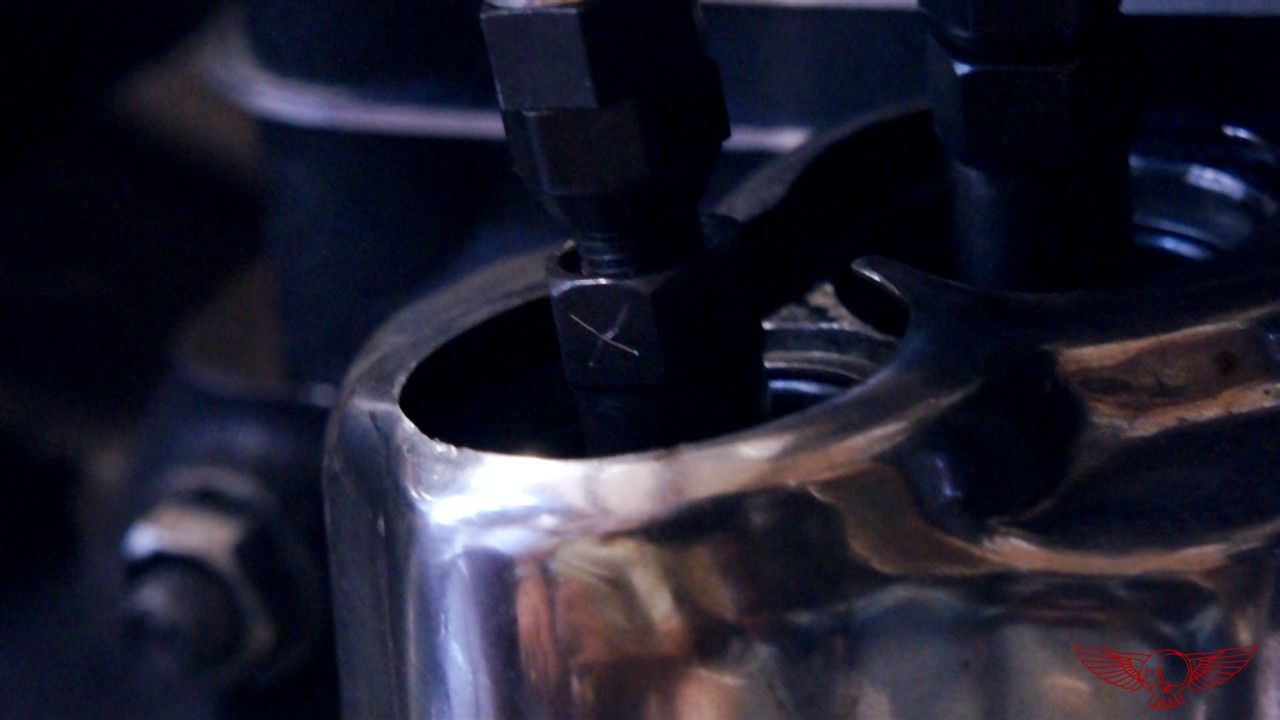

ep09 12 harley pushrod adjustment

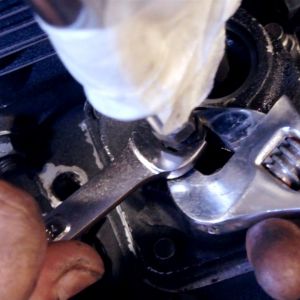

ep09 13 adjustable pushrod installation
